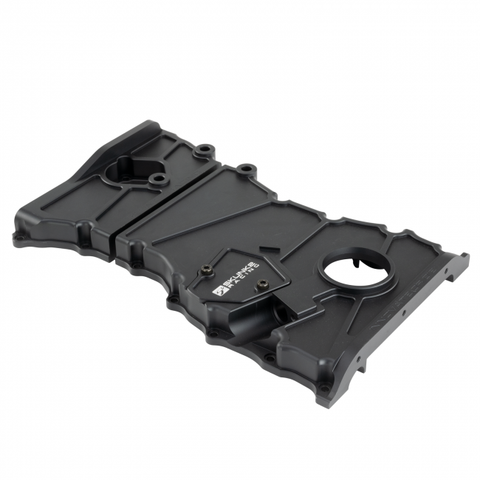

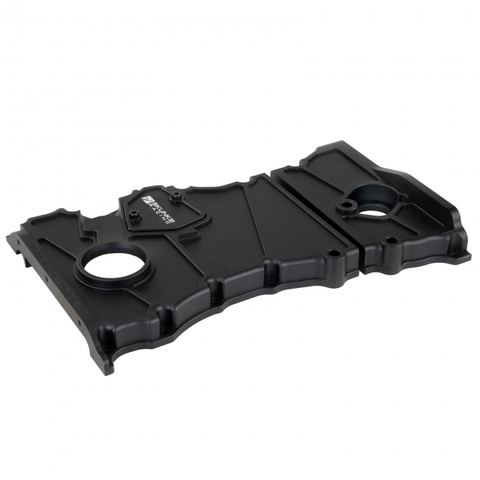

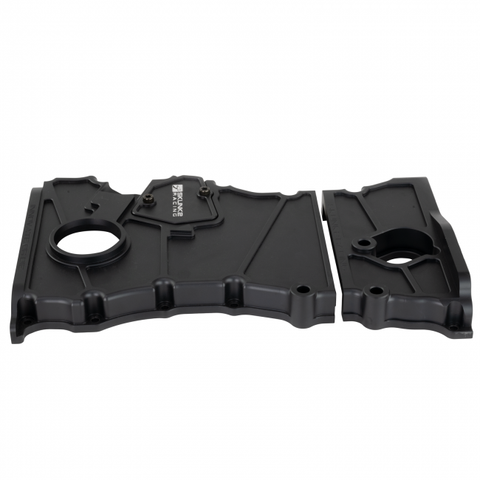

Skunk2 Honda K20 Black Anodized Timing Chain Cover

Skunk2 Racing K-Series Timing Chain Cover for Honda K20A / K20Z1 engines.

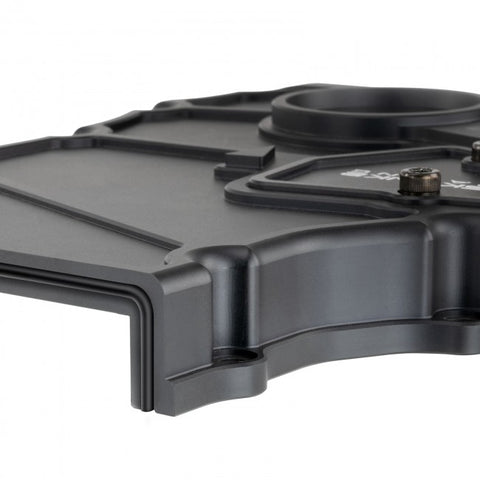

Introduced over a decade ago, the Skunk2 is ‘The Original’ K-Series Billet Timing Chain Cover. Each cover is CNC machined from billet 6061 aluminum and features a two-piece design which facilitates easy timing gear access and cylinder head removal. The multi-piece design allows each cover to easily be surfaced to fit engines with reduced head and deck heights. The interface between the upper and lower covers is sealed using an O-ring gasket set in a machined groove.

The Skunk2 Timing Chain Cover features an oversized access door for easy timing chain tensioner access, as well as an integrated chain-guide that prevents the chain from jumping teeth and losing its index position when cams or the head is removed. Additionally, the Skunk2 timing chain cover is 14% (10oz) lighter in weight than the OE timing cover.

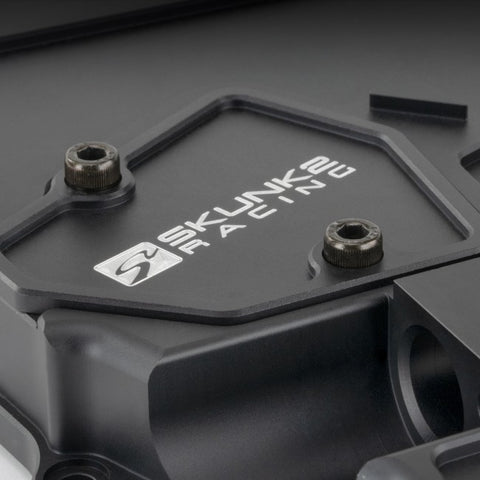

Based on functionality, weight savings, and pure looks alone, the Skunk2 Front Timing chain cover is a must have for any serious engine builder. ‘Skunk2 Racing’ is engraved on the upper cover and our mantra ‘Innovate or Die’ is engraved on the lower cover as words of encouragement to anyone with a competitive spirit.

Features:

• CNC Machined from 6061 Aluminum Billet

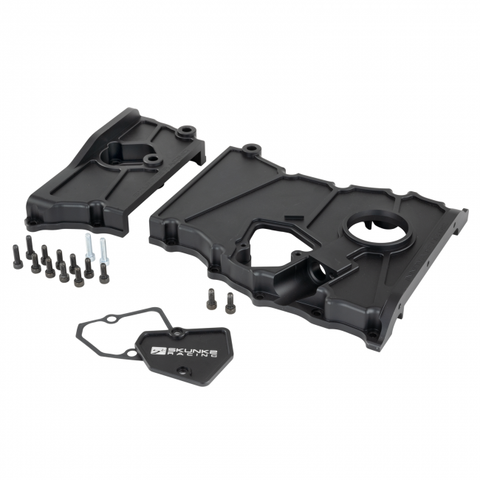

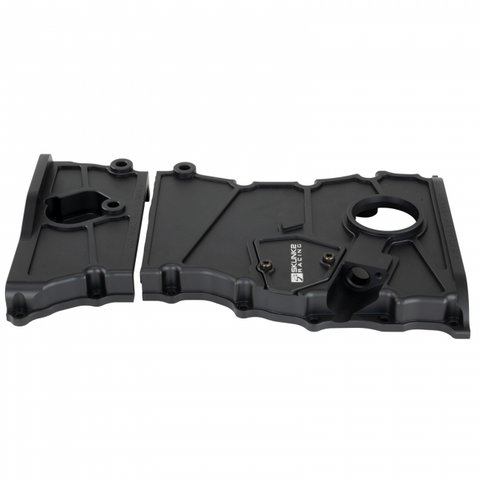

• 2-Piece Modular Design for Quick and Easy Access
• 14% Weight Savings over OEM Cover

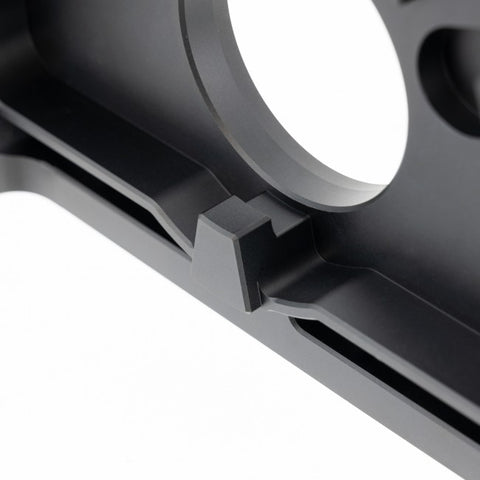

• Timing Chain Guide Integrated into the Design
• Oversized Timing Chain Tensioner Access Door
• Stainless Steel Mounting Hardware Included
• OEM Fitment; No Modifications Required

Available in Black Anodized or Raw Machined Finish

US Patent No.: D650,812 S

Only compatible with K Series engines with only 3 upper mounting bolts.

Not compatible with K20Z3/K24Z7 Engine

Recommendations:

• Ultra Lightweight Magnesium Valve Cover – (666-05-0200)

• VTEC Block-Off Plate Raw Machined – (PN 639-05-0700)

• VTEC Block-Off Plate Black Anodized – (PN 639-05-0705)

• VTEC Solenoid Housing Hard Anodized – (PN 639-05-0400)

• VTEC Solenoid Housing Black Anodized – (PN 639-05-0405)

• VTC Solenoid Delete Raw Machined – (PN 639-05-0500)

• VTC Solenoid Delete Black Anodized – (PN 639-05-0505)

• Cylinder Head Port Covers – (PN 666-05-0100)

• Ignition Coil Cover Raw Machined – (PN 632-05-1000)

• Ignition Coil Cover Black Anodized – (PN 632-05-1005)


• Reservoir Brake/Clutch Cover – (PN 660-99-0010)
