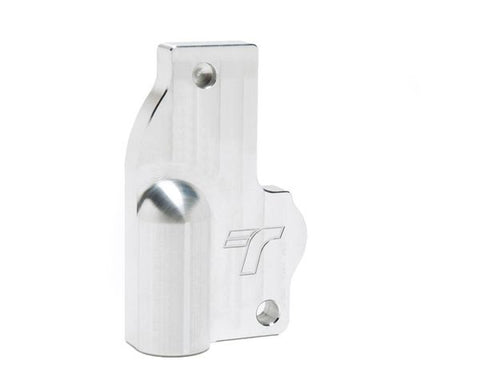

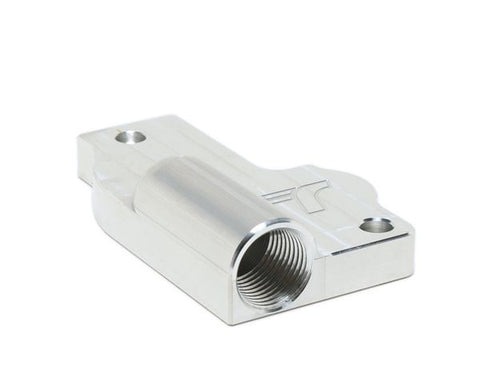

TRACTUFF K24Z7 WATER BYPASS ADAPTER

TracTuff

  • $96.95


**Now Included: 1 x 90° 1/2" NPT to 5/8” hose barb, and 1 x 1.00” hose clamp**

Our K24AZ7 water bypass adapter allows R40 cylinder head owners to run the more popular aftermarket intake manifold options that were designed for the early PRB/ PRC flange.
The PRB/ PRC style manifolds do not have an integrated coolant passage so the coolant bypass hole is left open when used together.

Even if you don't plan on running a PRB/ PRC style manifold... there are plenty of benefits that make this product a must have! The biggest benefit is in the reduction of intake manifold temps by eliminating the heat transfer/ heat soak associated with hot coolant running through the manifold. By modifying the manifolds flange (cutting off coolant portion) and running our adapter the coolant is kept away from the manifold completely, just like what you would find on the earlier PRB/ PRC heads, so NOW your Hondata IM gasket will really work!! We've seen drops as much as 18°!! Not to mention, the additional benefit of no longer having to drain the coolant when removing the intake manifold for maintenance or swaps... makes things a real SNAP!




Installation Guide


<!--[if !supportLineBreakNewLine]-->
<!--[endif]-->

Start by installing the o-ring into the recess on the adapter’s backside. Set the adapter aside.





Grab the stainless steel link and longer 40mm Genuine Honda flanged bolt and install the bolt into the smooth hole in the link.





Install the bolt and stainless link into the right-most intake manifold flange bolt hole. Tighten lightly with the link facing upward.





Grab the shorter 28mm Genuine Honda flange bolt and adapter and install the bolt into the lower bolt hole.





Take the bolt and adapter and install it over the exposed water & egr ports. Thread the bolt into the cylinder head until it is hand tight. Do NOT install the adapter over a gasket



Grab the stainless steel set screw and thread it into the stainless link. The pointed set screw will tighten into the hole well but in some extreme cases it may be a good idea to use some medium grade Loctite.


<!--[if !supportLineBreakNewLine]-->
<!--[endif]-->



Swing the stainless link and set screw down until it lines up with the pilot hole of your choice.




<!--[if !supportLineBreakNewLine]-->
<!--[endif]-->

Tighten the 8mm intake manifold and Water Bypass bolts to 18 lb. ft. of torque and tighten the set screw until you have sufficient crush on the adapters o-ring. Congratulations! You're done.
